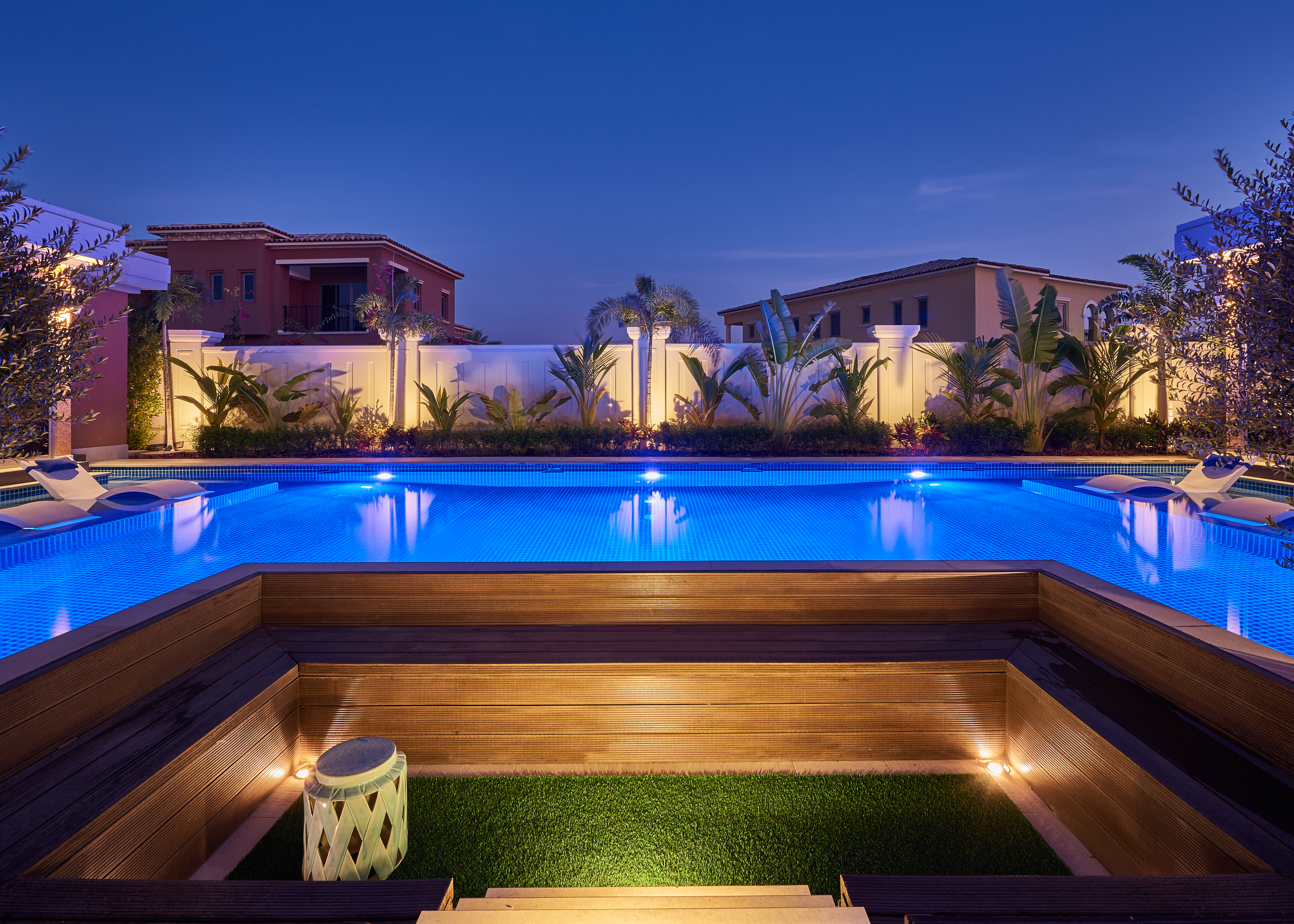

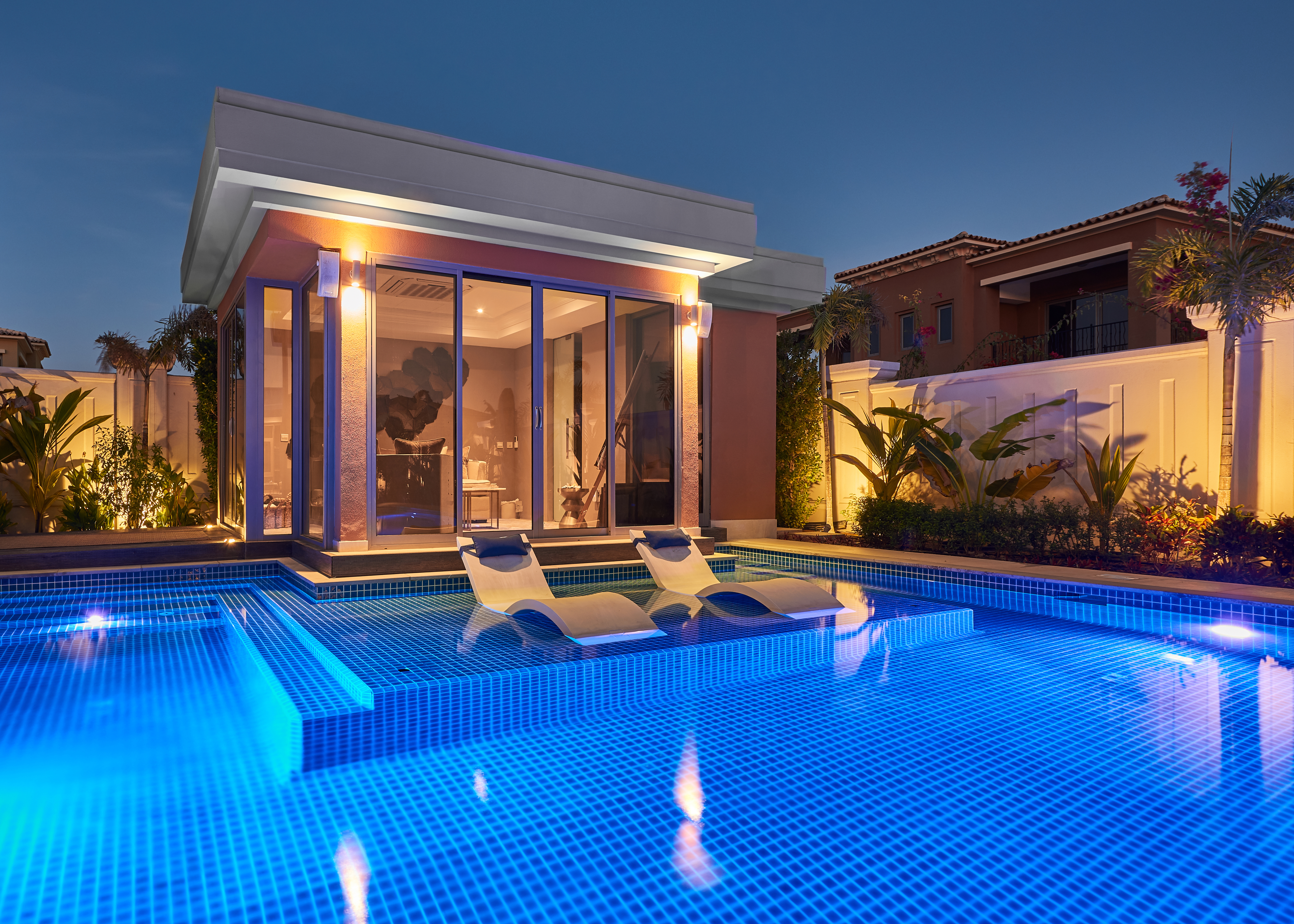

In the private villa, the swimming pool stands as a refined centerpiece, featuring crystal-clear waters and an elegant design. Surrounded by meticulously landscaped gardens, it provides a serene retreat for both invigorating swims and tranquil lounging. With comfortable sunbeds and a focus on luxury, this space epitomizes tranquillity and exclusivity.

The swimming pool is distinguished by its impressive size and functionality, being the largest in the compound. Its design features crystal-clear waters and an elegant infinity edge that not only provides a stunning visual effect but also enhances its usability. Strategically placed within meticulously landscaped gardens, the pool offers a versatile space for both recreation and relaxation. Its expansive surface accommodates various activities, from energetic laps to leisurely swims, while the swim-up bar and integrated seating areas enhance convenience and enjoyment. This pool excels in blending aesthetic appeal with practical features, making it a standout example of functional luxury.

Pool Details (Overflow pool technical specification) Main Pool Size: 6 m x 12 m, Surface of Pool: 72 m2, Pool Depth Level: 1.4 m, Volume of Pool: 100.8 m3, Flow Rate: 4.9 m3/h, Filtration System: Sand Filtration, Water Filtration turnover cycle: less than 4.0 h, PH is maintained by addition of sodium bi-sulphate, Chlorine PPM is maintained by HTH/SDIC, Algaecide is added once in a week, PH is raised by the addition of light soda ash. - Chemical Dosing Equipment (AQUA) technopool 3: multifunctional built-in tools, including pH, temperature and Rx (upon request) Suitable for the dosing of acid/ alkaline corrector, depending on the pH reading, the timed dosing of disinfectant (Hydrogen peroxide) and the water temperature and for a proportional dosing of chlorine. - Sand Filtration (AQUA) Ocean Gelcoat Filters A lateral flow, top or side mounted valve sand filter to promote clean, debris free water and low maintenance operation. 6-way multiport, top or side mounted selector for easy maintenance (Filtration, backwash, rinsing, waste, circulation and lock).Clamp / bolt style fixtures for easy access, Non-corrosive, gelcoat fibreglass tank with a smooth, grey finish,ABS thermoplastic polymer lateral flow system , built-in pressure gauge , OC-TOP model includes transparent lid providing clear view of filter media and an air release valve to remove any accumulated air inside the tank, Maximum operating pressure: 2.5 bar (Test pressure: 4 bar) - SELF PRIMING PUMP “EUROPRO” (AQUA) A highly reliable and efficient self-priming centrifugal pump with built-in large capacity pre-filter. The ‘Europro’ is extremely quiet to run and developed to promote water circulation and filtration in residential swimming pools. Technical features • Fibreglass reinforced technopolymer body, impellar and diffuser • Nylon strainer to prevent debris from entering the system • Strainer lid in clear antioxidant polycarbonate for visibility during operation • Electrical motor shaft (Completely isolated from the water flow) • Diffuser in reinforced technopolymer • Mechanical seal in carbon / alumina / NBR / AISI 316. • Pump body O-rings in NBR, threaded fasteners and reinforcing rings in AISI 304 • Butterfly drain plugs for easy removal and refitting without tools • Asynchronous continuous duty 2-pole motor (S1) with generous range of power ratings from 0.5 HP to 3 HP, single phase & three-phase • Motor casing in die cast aluminium with electrophoresis surface treatment to prevent oxidation even in aggressive environmental conditions • Base plate with rubber mounts to reduce vibration transmission • Single phase version with integral thermal and overcurrent protection and permanent split capacitor (PSC), assembled inside the terminal box for all versions. • Water-proof & sealed ball bearings for resistance to water & humidity. • Motor construction to EN 60335-2-41 standards • Recommended liquid: clean water or water slightly contaminated with suspended solid bodies, long fibre; highly aggressive water with high percentage of chlorine/bromine and PHMB (Polyhexamethylene Biguanide) or water treated with chlorine electrolytic process. • Installation can be fixed or portable in horizontal position • Operating range: Up to 42m3/h with pressure head of up to 22m • Maximum liquid temperature: 60°C • Maximum ambient temperature: +50°C • Motor: 2900 RPM • Maximum operating pressure: 2.5 bar • Protection rating: IPX5 50Hz and 60Hz on demand • Insulation rating: Class F • Standard: IEC-60364 - Overflow grilled channel drain (Porcelain) 2-inch outlet size Drain cover made of marble matching the copping marble & sample to be submitted for approval. - Main drain (AQUA) • High quality main drain with anti-vortex grille • Made of white ABS thermoplastic polymer • Flow rate 52m3/h at speed of 0.5m/s. Lateral fitting Ø 125/110 • Socket insert and screw INOX AISI-316 stainless steel for liner installations • In accordance with legislation: UNI 13451 for public use • UV resistance - Inlets (AQUA) ABS PLASTIC WHITE, Anti-vortex lid, 2” side connections. - Vacuum point 2” (AQUA) Made of ABS PLASTIC WHITE. 2” connections. - ABS WATER LEVEL REGULATOR (AQUA) • Manufactured in high quality ABS thermoplastic polymer • Injection moulded for increased resistance and durability • Maximum working pressure: 2.5 bar • UV resistance - Stainless steel ladder 3 steps Ladder - Control panel (ABB) IP 55, with overload relays, circuit breakers, timers, ELCP, All COMPONENTS are ABB or equivalent. - Under water light 24-Watt Flat Type under water light ,12 V LED WHITE, IP 68, ABS Fixture. -Luminescent Mosaic The Luminiscent Blue glass mosaic is a mosaic of square tiles in "square" format (25x25 mm), in light blue with a luminescent effect during the night. Its use in special combinations adds distinction to pools, spas, and wet areas. - Fiber-optic systems for pool lighting (Schneider) Standard Length: 100 meters per roll Inner Diameter for end glow pool fiber cables: 6 mm, 10 mm, 11 mm, 14 mm. Out Diameter for end glow fiber cables: 8.8 mm, 13 mm, 14 mm, 17.3 mm. Plastic fiber optic strands operation temperature: -60°C – 170°C Main materials: PMMA The main advantage of fiber-optic illumination is the ability to install it into the most difficult to reach places, where there is no power grid or minimal space. • Durability of the system: up to 20 years (up to 50,000 hours of continuous operation) • Extraordinary beauty; • Security; • Fire safety and reliability; - Aquarmony AstralPool Aquatic Speaker Aquarmony underwater music system to spread music and voice underwater, creating a magical and different atmosphere. Aquarmony is a watertight loudspeaker devised and designed for the pool. It is built with high quality components, innovative technology and an assembly method that allows the correct operation in saltwater or with a high chlorine content. Easy to install. - All UPVC pipes class E high pressure Cosmoplast - HEAT PUMP TOP/FRONT DISCHARGE INVERTER (55 kW) (AQUA) Incorporates purpose-built components for long lasting and high efficiency that achieves maximum results. Internal fins, containing high performance titanium dioxide TiO2, provides a corrosion resistance, impermeable ice formation and a dustproof evaporator coil. Technical features • Used for heating or cooling residential and public pools such as hotels, schools, fitness centres, and aqua parks. • From 16kW up to 200kW. • High efficiency that reaches up to 13 COP, reduces energy usage and enables a longer swimming season. • Unique design metal cabinet with integrated control system. • Inverter fan with low noise level and vertical air discharge. As a result, the sound level of the unit at 1meter,is as low as 40dB(A) under silence mode. • Defrosting: At reduced noise levels, the unit defrosts the evaporator when the ventilator is activated. • High/Low pressure protection available. • Intelligent touch screen LCD control system can be connected to BMS or Wi-FI. • Titanium Heat Exchanger. • Titanium dioxide TiO2 coating for the evaporator provides protection from corrosion and delivers maximum life expectancy. • Mitsubishi inverter compressor with R410A Refrigerant. • Phase monitor: Protects the compressor in case of phase loss or inversion. • Super Silent: – The compressor inside the unit is wrapped with a new noise reduction internal sponge, proven to effectively reduce sound levels. – The Mitsubishi Inverter compressor produces a much lower running noise level. – A newly developed fan blade design is employed within the heat pump which makes the unit run even quieter. • An electronic expansion valve, on each compressor, regulates the refrigerant flow rate to ensure the unit operates with high efficiency in different weather conditions. - POOL SMART PLUS (AQUA) A highly convenient, remotely accessible, touchscreen heat controller for residential and commercial pools. Includes a flow switch and temperature sensor for accurate monitoring and a management system that gives complete control over the swimming pool heating. Technical features • Smart touchscreen display • BMS (Building Management System) Integration Ready • Multi-lingual interface • Programmable 24-hour time clock (4 time zones) • Flow and temperature sensor ports • Accurate control to 0.5oC • Diagnostic display - Why Aqua Brand? Aqua is international experienced certified Italian brand. Has ISO Certificate UNI EN ISO 9001 2015 Problem and solutions 1- Suspecting of leakage due to water level decreased: we marked the water level of the pool and balancing tank in parallel to the pressure test to find out later that balancing tank non return valve is damaged due to workmanship.
